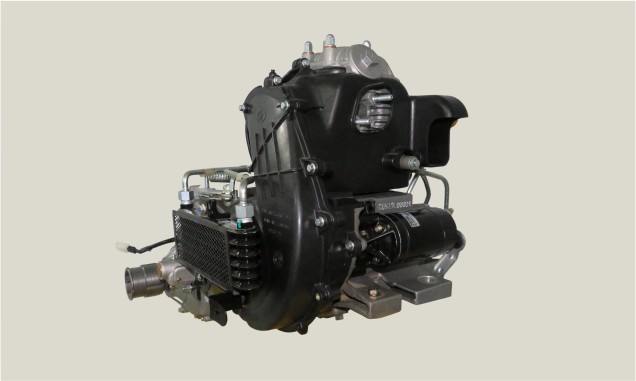

Type | 198.6 cc, Single Cylinder 4 Stroke |
Engine Cooling | Air Cooled |
Max. Power | 6.75kW (9.05 hp)@5750 + 250 rpm |
Max. Torque | 14.35 Nm@3250 + 250 rpm |
Transmission | 4 speed forward + 1 reverse |

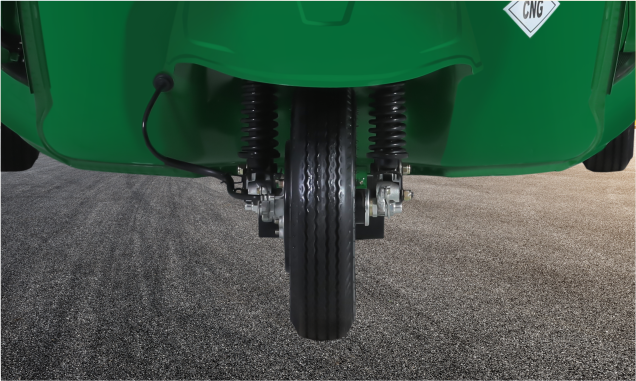

Front | Helical coil Compression Spring with Hydraulic Shock absorbe |
Rear | Helical coil Compression Spring with Hydraulic Shock absorbe |
Wheel Base (mm) | 1950 |
Overall Width (mm) | 1390 |
Overall Length (mm) | 2836 |
Overall Height (mm) | 1858 |
Ground Clearance (mm) | 220 |
Front | Drum type, Dual circuit, Hydraulic front & Rear combined with TMC |
Rear | Drum type, Dual circuit, Hydraulic front & Rear combined with TMC |
Chassis | Monocoque chassis |
Electrical System | 12V DC / 35ah |

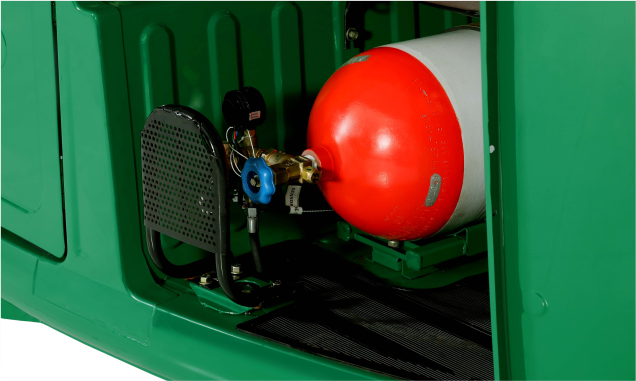

Fuel tank capacity | Water: 40 Ltr, Petrol : 2.9 Ltr |
Kerb Weight (kg) | 480 |
GVW (kg) | 800 |
Seating Capacity | 1 Driver + 3 Passenger |

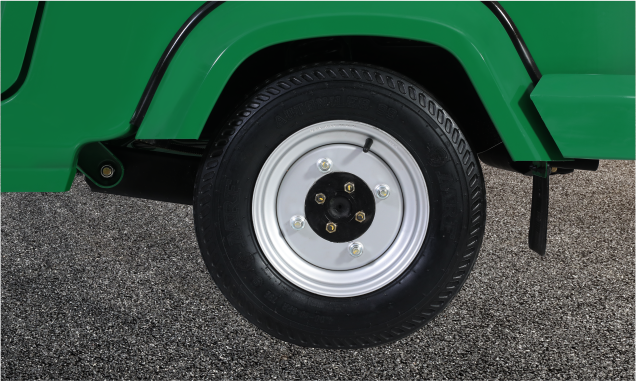

Front & Rear | 4.00 – 10 – 6PR |
